Horizontal Lathe for machining wheelsets





BASIC TECHNICAL SPECIFICATIONS



Maximum wheel tread diameter (before machining): 1,250 mm
Minimum wheel tread diameter (after machining): 600 mm
Maximum weight of wheelset: 3,000 kg



PURPOSE

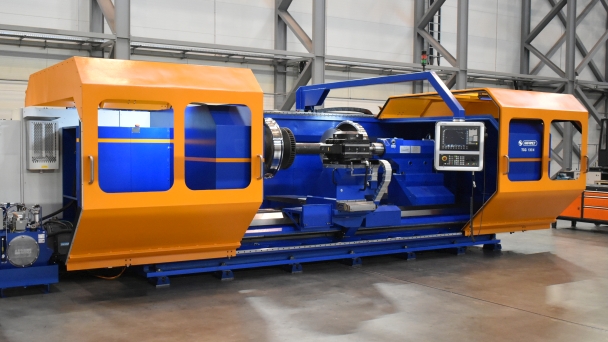

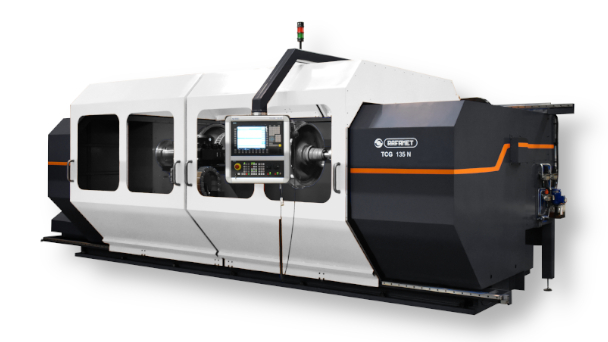

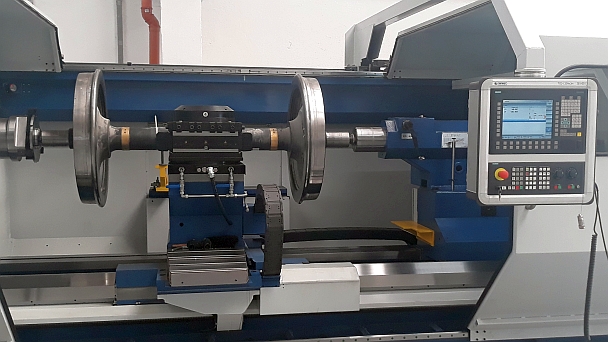

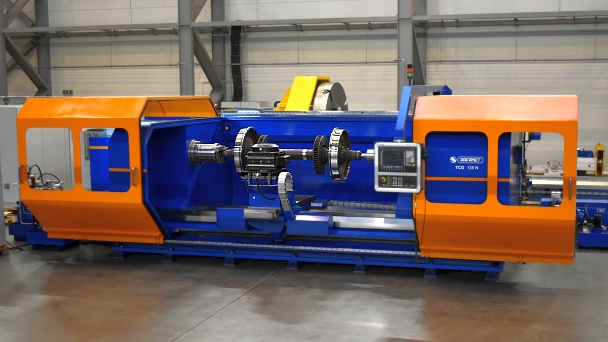

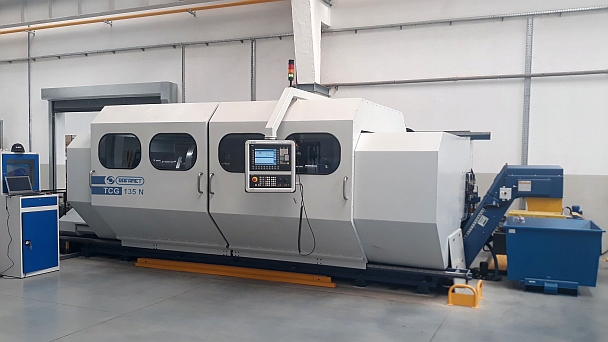

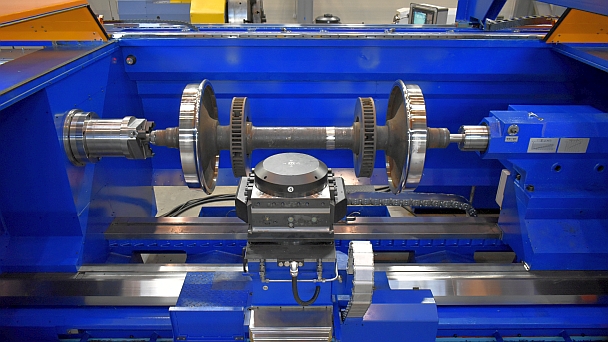

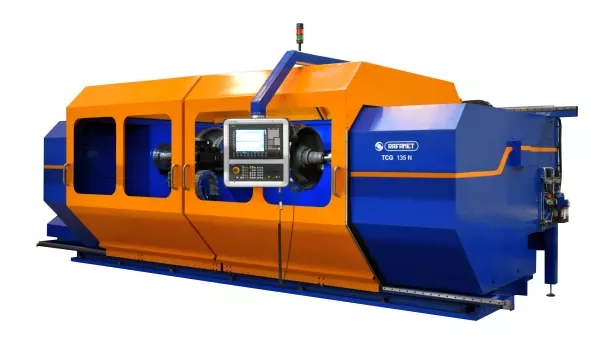

The TCG 135 N is a CNC special-purpose horizontal lathe designed for reprofiling of wheels and brake discs used in rail vehicles. The machine tool enables to perform turning and burnishing of outboard & inboard journals, axle, conical or curvilinear surfaces.



MAIN FEATURES



  • Machine major body elements made as extremely rigid, heavily ribbed box-type, high grade grey iron castings providing maximum vibration-damping capabilities during cutting process.
  • Main drive powered by AC motor of continuously variable rotation rates providing high productivity and quality of wheelset machining.
  • Automatic and reliable touch-type profile wear measurement.
  • Versatile equipment and wide programming options guarantee precise machining of even unusual wheel profiles.
