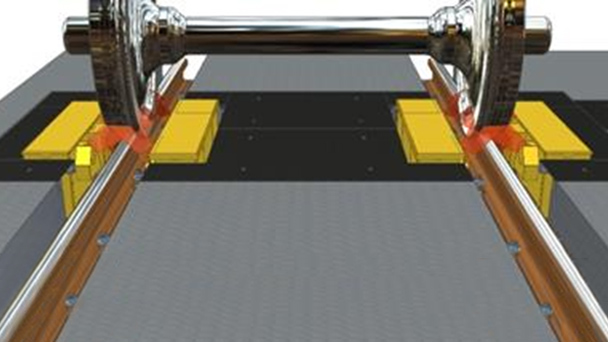

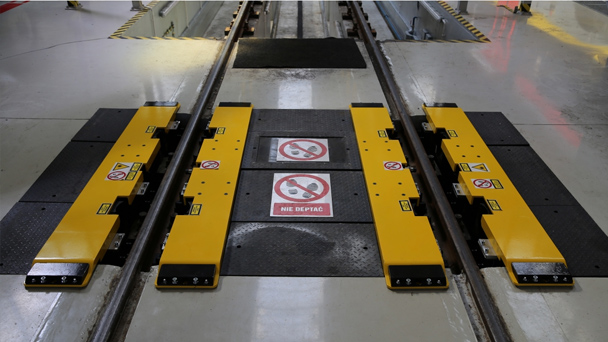

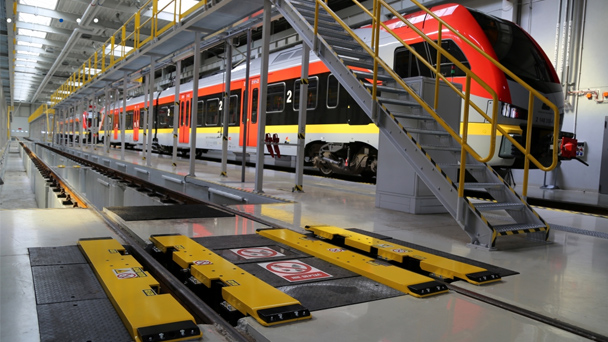

The laser system for wheelset measurement is designer for monitoring of wheelset Wheel profile wear. The system consists of the modules installed in tracks and providing the following functions:



The wheel measurement is carried out on a vehicle running with the maximum speed of 10 km/h. The scope of measurements can include the following parameters:

  • Full wheel tread profile.
  • Wheel flange height.
  • Wheel flange width.
  • Wheel flange inclination qR.
  • Wheel tread diameter.
  • Wheelset back to back distance
  • Distance between active surfa ces.

The offer elaborated in cooperation with the company P.U.T. GRAW Sp. z o.o., a supplier of track and rolling stock wheel measuring systems. Learn more on GRAW products.



Send inquiry
